Product Summary

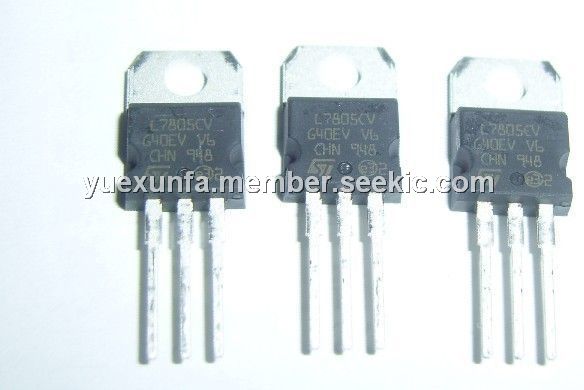

The L7805CV-11 is a three-terminal positive regulator. It is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7805CV-11 can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. The L7805CV-11 employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, the L7805CV-11 can deliver over 1A output current. Although designed primarily as fixed voltage regulators, the L7805CV can be used with external components to obtain adjustable voltage and currents.
Parametrics
L7805CV-11 absolute maximum ratings: (1)VI, DC Input Voltage: 35V for VO= 5 to 18V; 40V for VO= 20, 24V; (2)IO, Output Current: Internally Limited; (3)Ptot, Power Dissipation: Internally Limited; (4)Tstg, Storage Temperature Range: -65 to 150℃; (5)Top, Operating Junction Temperature Range: -55 to 150℃.
Features
L7805CV-11 features: (1)output current to 1.5A; (2)output voltages of 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition SOA protection.

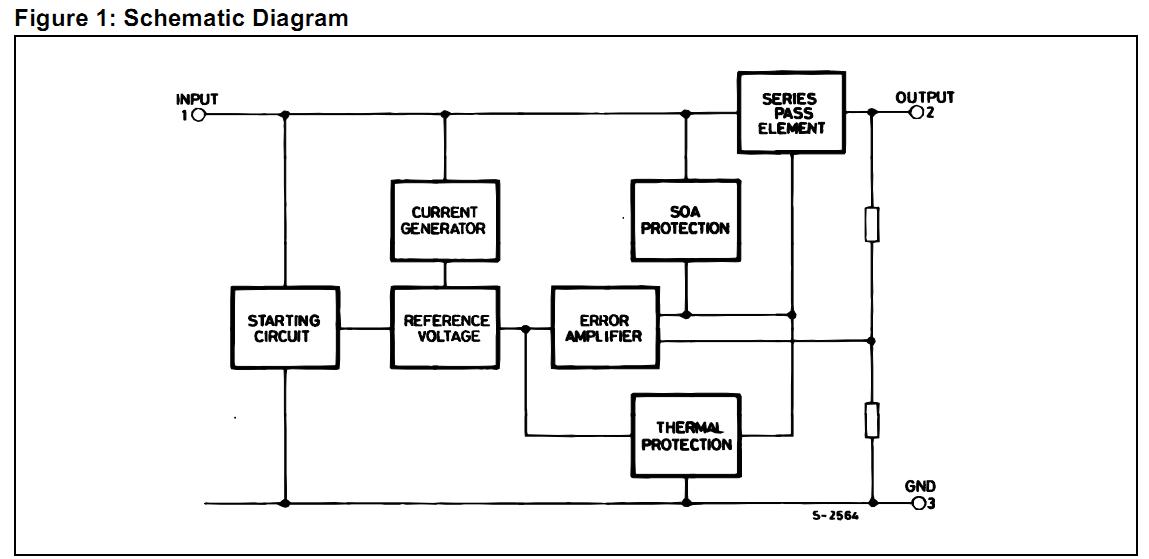

Diagrams
 |
