Product Summary

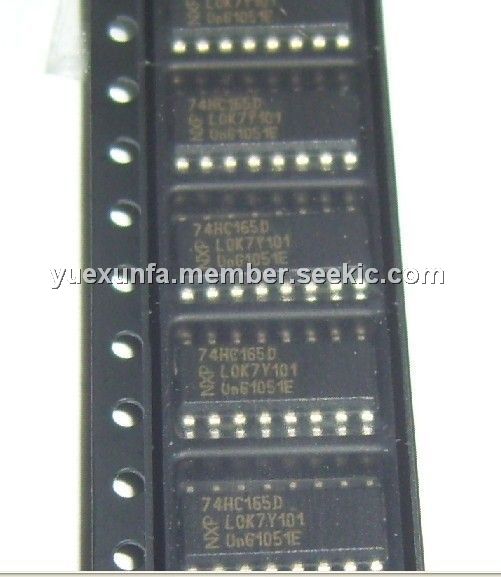

The 74HC165D is a high-speed Si-gate CMOS device that complies with JEDEC standard no. 7A. It is pin compatible with Low-power Schottky TTL (LSTTL). The 74HC165D is an 8-bit parallel-load or serial-in shift register with complementary serial outputs (Q7 and Q7) available from the last stage. When the parallel load (PL) input is LOW, parallel data from the D0 to D7 inputs are loaded into the register asynchronously.

Parametrics

74HC165D absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +7 V; (2)IIK, input clamping current VI < -0.5 V or VI > VCC + 0.5 V: ±20 mA max; (3)IOK, output clamping current VO < -0.5 V or VO > VCC + 0.5 V: ±20 mA max; (4)IO, output current -0.5 V < VO < VCC + 0.5 V: ±25 mA max; (5)ICC, supply current: - 50 mA max; (6)IGND ground current: -50 mA min; (7)Tstg, storage temperature: -65 +150 ℃.

Features

74HC165D features: (1)Asynchronous 8-bit parallel load; (2)Synchronous serial input; (3)Complies with JEDEC standard no. 7A; (4)ESD protection: HBM JESD22-A114E exceeds 2000 V; MM JESD22-A115-A exceeds 200 V; (5)Specified from -40 ℃ to +85℃ and from -40 ℃ to +125 ℃.

Diagrams

74HC165D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74HC165D
74HC165D

NXP Semiconductors

Counter Shift Registers 8BIT SHIFT REGISTER PAR-IN/SERIAL-OUT

Data Sheet

Negotiable
74HC165D,652
74HC165D,652

NXP Semiconductors

Counter Shift Registers 8BIT SHIFT REGISTER

Data Sheet

0-1: $0.09
1-25: $0.08
25-100: $0.08
100-250: $0.07
74HC165DB,118
74HC165DB,118

NXP Semiconductors

Counter Shift Registers 8-BIT S/PI-SO SHIFT

Data Sheet

0-1: $0.25
1-25: $0.22
25-100: $0.22
100-250: $0.21
74HC165D,653
74HC165D,653

NXP Semiconductors

Counter Shift Registers 8-BIT S/PI-SO SHIFT REGISTER

Data Sheet

0-1: $0.09
1-25: $0.08
25-100: $0.08
100-250: $0.07
74HC165DB,112
74HC165DB,112

NXP Semiconductors

Counter Shift Registers 8-BIT S/PI-SO SHIFT

Data Sheet

0-1: $0.46
1-25: $0.40
25-100: $0.35
100-250: $0.31
74HC165DB
74HC165DB

NXP Semiconductors

Counter Shift Registers 8-BIT S/PI-SO SHIFT REGISTER

Data Sheet

Negotiable
74HC165DB-T
74HC165DB-T

NXP Semiconductors

Counter Shift Registers 8-BIT S/PI-SO SHIFT REGISTER

Data Sheet

Negotiable
