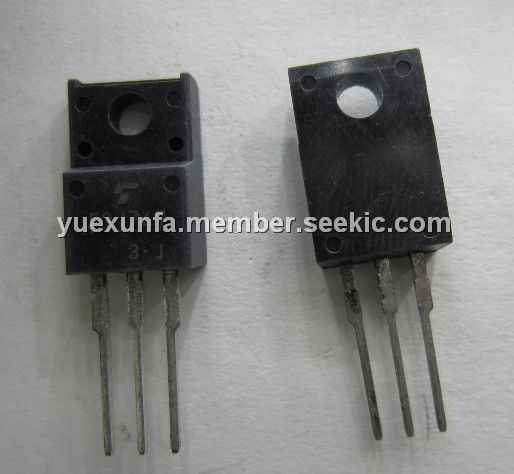

Product Summary

The F3JZ47 is a silicon diffused type thyristor. It is suitable for medium power control applications.

Parametrics

F3JZ47 absolute maximum ratings: (1)peak gate power dissipation, PGM: 5W; (2)average gate power dissipation, PG(AV): 0.5W; (3)peak forward gate voltage, VFGM: 10V; (4)peak reverse gate voltage, VRGM: -5V; (5)peak forward gate current, IGM: 2A; (6)junction temperature, Tj: -40 to 125℃; (7)storage temeprature range, Tstg: -40 to 150℃; (8)isolation voltage, VISOL: 1500V.

Features

F3JZ47 features: (1)repetitive peak off-state voltagle: VDRM=400, 600V; (2)average on-state current: IT(AV)=3V; (3)isolation volage: VISOL=1500VAC.

Diagrams

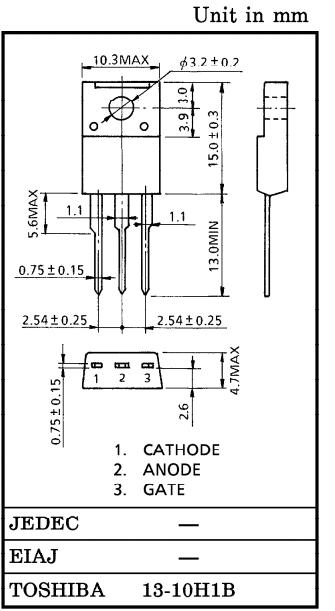

F3JZ47 dimensions
