Product Summary

The LB1838M is a low-saturation two-channel bidirectional motor driver IC for use in low-voltage applications. The LB1838M is a bipolar stepper-motor driver IC that is ideal for use in printers, FDDs, cameras and other portable devices.

Parametrics

LB1838M absolute maximum ratings: (1)Maximum supply voltage, VCC max: –0.3 to +10.5 V; VS max: –0.3 to +10.5 V; (2)Output applied voltage VOUT: VS +VSF V; (3)Input applied voltage VIN: –0.3 to +10 V; (4)Ground pin flow-out current IGND Per channel: 1.0 A; (5)Allowable power dissipation, Pd max1: 550mW; (6)Operating temperature Topr: –20 to +75℃; (7)Storage temperature Tstg: –40 to +125℃.

Features

LB1838M features: (1)Low voltage operation (2.5 V min); (2)Low saturation voltage (upper transistor + lower transistor residual voltage; 0.40 V at 400 mA).; (3)Through-current prevention circuit built in; (4)Separate logic power supply and motor power supply; (5)Spark killer diodes built in; (6)Thermal shutdown circuit built in; (7)Compact package (14-pin MFP).

Diagrams

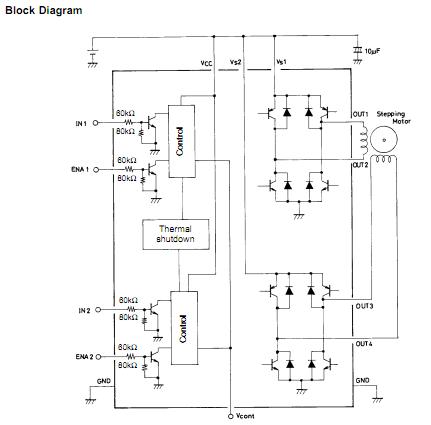

LB1838M block diagram
