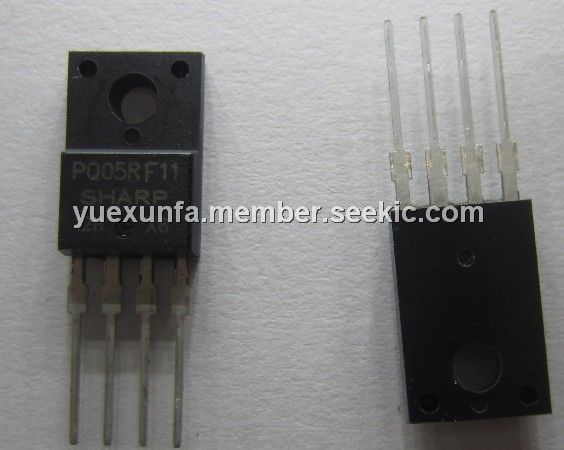

Product Summary

The PQ05RF11 is a 1A Output Low Power-Loss Voltage Regulator. It is suitable for Seris power supply for various electronic equipment such as VCRs and musical instruments.

Parametrics

PQ05RF11 absolute maximum ratings: (1)Input voltage, VIN: 35V; (2)ON/OFF control terminal voltage, vc: 35V; (3)Output current, io: 1A; (4)Power dissipation (No heat sink), PD1: 1.5W; (5)Power dissipation (With infinite heat sink), PD2: 15W; (6)Junction temperature, Tj: 150℃; (7)Operating temperature, Topr: -20 to 80℃; (8)Storage temperature, Tstg: -40 to 150℃; (9)Soldering temperature, Tsol: 260℃.

Features

PQ05RF11 features: (1)Compact resin full-mold package; (2)Low power-loss (Dropout voltage:MAX.0.5V); (3)Built-in ON/OFF control terminal (PQ05RF1/PQ05RF11 series); (4)Built-in output voltage minute adjustment terminal (Critical rate of ripple rejection is improved.); (5)Lead forming type (PQ05RF1A/1B series) is also available.

Diagrams

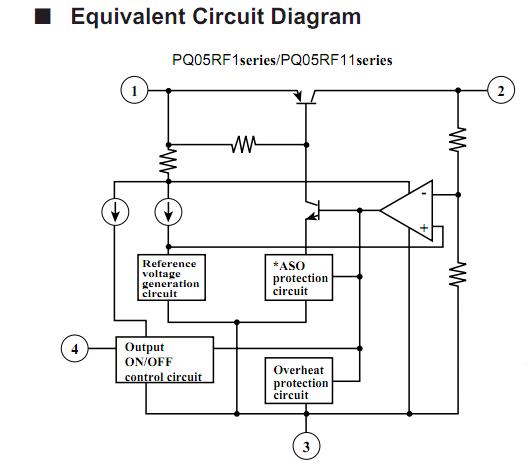

PQ05RF11 block diagram
