Product Summary

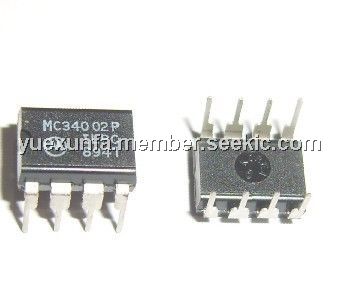

The MC34002P is a JFET input operational amplifier which combines two state-of-the-art linear technologies on a single monolithic integrated circuit. Each internally compensated operational amplifier has well matched high voltage JFET input devices for low input offset voltage.
Parametrics
MC34002P absolute maximum ratings: (1)Supply voltage: ±18 V; (2)Differential input voltage: ± 30V; (3)Input voltage: ±16V; (4)Operating ambient temperature: 0 to 70℃; (5)Operating junction temperature: 150℃; (6)Storage temperature: -65 to +150℃.
Features
MC34002P features: (1)Input offset voltage options of 5.0 mV and 10 mV maximum; (2)Low input bias current: 40 pA; (3)Low input offset current: 10 pA; (4)Wide gain bandwidth: 4.0 MHz; (5)HIgh slew rate: 13 V/μs; (6)Low supply current: 1.4 mA per amplifier; (7)High input impedance: 10 12 Ω; (8)High common mode and supply voltage rejection ratios: 100 dB; (9)Industry standard pinouts.

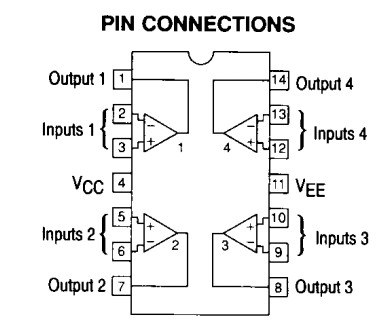

Diagrams
 |
