Product Summary

The MCT2E is a phototransistor. The MCT2E consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package. It is suitable for Power supply regulators, Digital logic inputs and Microprocessor inputs.

Parametrics

MCT2E absolute maximum ratings: (1)Storage Temperature TSTG: -55 to +150℃; (2)Operating Temperature TOPR: -55 to +100℃; (3)Lead Solder Temperature TSOL: 260℃ for 10 sec; (4)Total Device Power Dissipation @ TA = 25℃, PD: 260mW.

Features

MCT2E features: (1)UL recognized (File # E90700); (2)VDE recognized (File # 94766): Add option V for white package (e.g., MCT2V-M); Add option 300 for black package (e.g., MCT2.300); (3)MCT2 and MCT2E are also available in white package by specifying -M suffix, eg. MCT2-M.

Diagrams

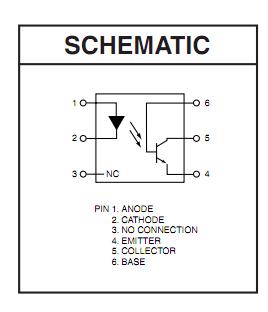

MCT2E block diagram
