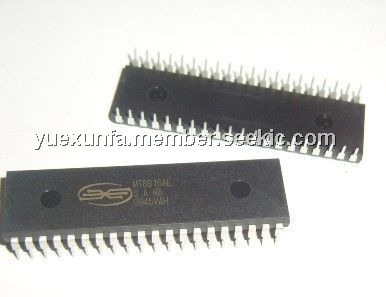

Product Summary
The Zarlink MT8816AE is an 8 x 16 Analog Switch Array. It is fabricated in Zarlink’s ISOCMOS technology providing low power dissipation and high reliability. The device contains a 8 x 16 array of crosspoint switches along with a 7 to 128 line decoder and latch circuits. Any one of the 128 switches can be addressed by selecting the appropriate seven address bits. The selected switch of MT8816AE can be turned on or off by applying a logical one or zero to the DATA input. VSS is the ground reference of the digital inputs. The range of the analog signal is from VDD to VEE. Chip Select (CS) allows the crosspoint array to be cascaded for matrix expansion. The applications of the MT8816AE include Key systems, PBX systems, Mobile radio, Test equipment/instrumentation, Analog/digital multiplexers, Audio/Video switching.
Parametrics
MT8816AE absolute maximum ratings: (1)Supply Voltage: -0.3 to 16.0 V; (2)Analog Input Voltage: -0.3 to VDD+0.3 V; (3)Digital Input Voltage: VSS-0.3 to VDD+0.3 V; (4)Current on any I/O Pin: ±15 mA; (5)Storage Temperature: -65 to +150 ℃; (6)Package Power Dissipation PLASTIC DIP: 0.6 W.
Features
MT8816AE features: (1)Internal control latches and address decoder; (2)Short set-up and hold times; (3)Wide operating voltage: 4.5 V to 13.2 V; (4)12Vpp analog signal capability; (5)RON 65 Ω max. @ VDD = 12 V, 25℃; (6)△RON≤10 Ω @ VDD = 12 V, 25℃; (7)Full CMOS switch for low distortion; (8)Minimum feedthrough and crosstalk; (9)Separate analog and digital reference supplies; (10)Low power consumption ISO-CMOS technology.

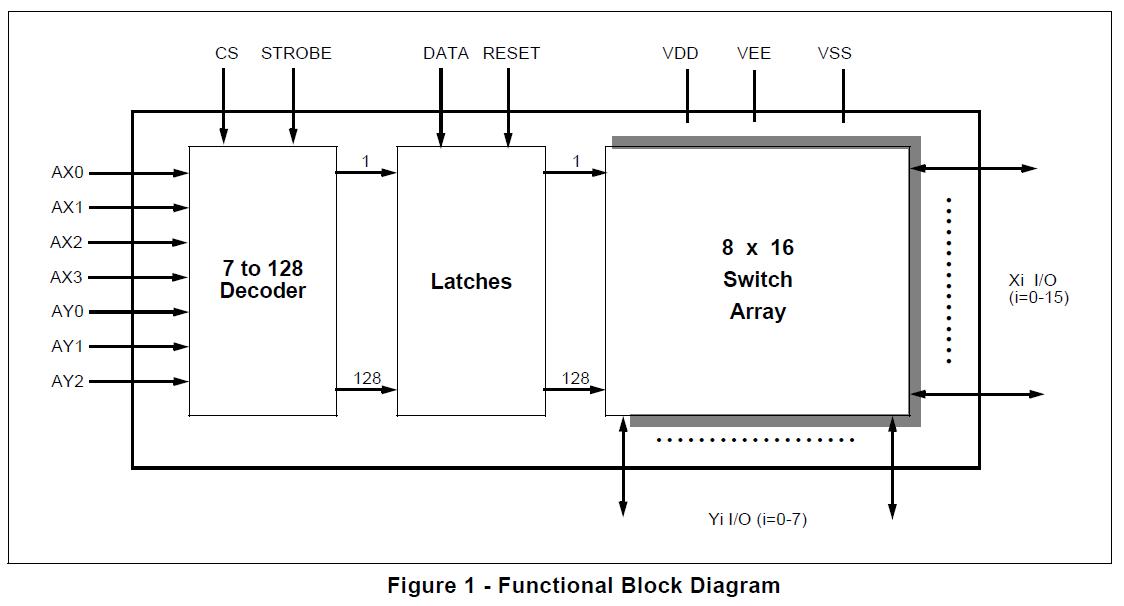

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MT8816AE |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MT8816AE1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
