N87C196KB20

commercial/express chmos microcontroller, PLCC-68, 1.5W Power Dissipation, 16 and 20 MHz Available

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.85~1.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.85~1.70

PartNumber:: N87C196KB20

Brand:: Intel Corporation - Intel | Pack: PLCC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Linda Lin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-01

From Other Seller

Part Number:N87C196KB20
US $0.85 - 1.70
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

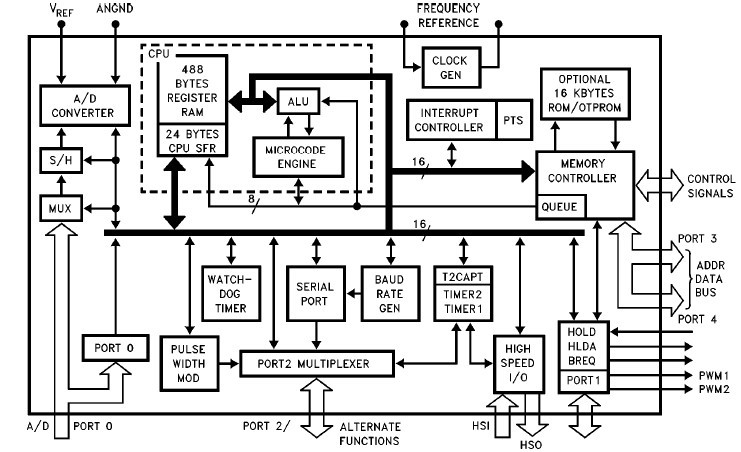

The N87C196KB20 is a 16-bit microcontroller is a high performance member of the MCSE 96 microcontroller family. The N87C196KB20 is an enhanced 80C196KB device with 488 bytes RAM, 16 and 20 MHz operation and an optional 16 Kbytes of ROM/OTPROM. Intel CHMOS III process provides a high performance processor along with low power consumption.

Parametrics

N87C196KB20 absolute maximum ratings: (1)Ambient Temperature Under Bias: -55℃ to 125℃; (2)Storage Temperature: -65℃ to 150℃; (3)Voltage On Any Pin to VSS: -0.5V to 7.0V; (4)Voltage from EA or VPP to VSS or ANGND: 13.00V; (5)Power Dissipation: 1.5W.

Features

N87C196KB20 features: (1)16 and 20 MHz Available; (2)488 Byte Register RAM; (3)Register-to-Register Architecture; (4)28 Interrupt Sources/16 Vectors; (5)Peripheral Transaction Server; (6)1.4 ms 16 x 16 Multiply (20 MHz); (7)2.4 ms 32/16 Divide (20 MHz); (8)Powerdown and Idle Modes; (9)Five 8-Bit I/O Ports; (10)16-Bit Watchdog Timer; (11)Extended Temperature Available; (12)Dynamically Configurable 8-Bit or 16-Bit Buswidth; (13)Full Duplex Serial Port; (14)High Speed I/O Subsystem; (15)16-Bit Timer; (16)16-Bit Up/Down Counter with Capture; (17)3 Pulse-Width-Modulated Outputs; (18)Four 16-Bit Software Timers; (19)8- or 10-Bit A/D Converter with Sample/Hold; (20)HOLD/HLDA Bus Protocol; (21)OTPROM One-Time Programmable Version.
