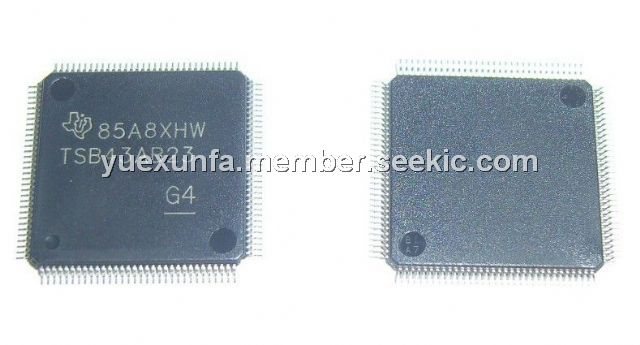

Product Summary

The TSB43AB23 is an integrated 1394a-2000 OHCI PHY/link-layer controller (LLC) device that is fully compliant with the PCI Local Bus Specification, the PCI Bus Power Management Interface Specification (Revision 1.1), IEEE Std 1394-1995, IEEE Std 1394a-2000, and the 1394 Open Host Controller Interface Specification (Release 1.1). It is capable of transferring data between the 33-MHz PCI bus and the 1394 bus at 100M bits/s, 200M bits/s, and 400M bits/s. The TSB43AB23 device provides three 1394 ports that have separate cable bias (TPBIAS). The TSB43AB23 device also supports the IEEE Std 1394a-2000 power-down features for battery-operated applications and arbitration enhancements. The TSB43AB23 design provides PCI bus master bursting, and it is capable of transferring a cacheline of data at 132M bytes/s after connection to the memory controller. Because PCI latency can be large, deep FIFOs are provided to buffer the 1394 data. The TSB43AB23 device provides physical write posting buffers and a highly-tuned physical data path for SBP-2 performance. The TSB43AB23 device also provides multiple isochronous contexts, multiple cacheline burst transfers, and advanced internal arbitration.

Parametrics

TSB43AB23 absolute maximum ratings: (1)Supply voltage range: –0.2 V to 2.2 V; (2)Input voltage range for PCI, VI, PHY, and Miscellaneous: –0.5 to VDD + 0.5 V; (3)Output voltage range for PCI, VO, PHY, and Miscellaneous: –0.5 to VDD + 0.5 V; (4)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (6)Electrostatic discharge, HBM: 2 kV; (7)Continuous total power dissipation: See Dissipation Rating Table; (8)Operating free-air temperature, TA: 0℃ to 70℃; (9)Storage temperature range, Tstg: –65℃ to 150℃; (10)Lead temperature 1,6 mm (1/16 inch) from cage for 10 seconds: 260℃.

Features

TSB43AB23 features: (1)Fully compliant with 1394 Open Host Controller Interface Specification (Release 1.1); (2)Fully compliant with provisions of IEEE Std 1394-1995 for a high-performance serial bus and IEEE Std 1394a-2000; (3)Fully interoperable with FireWire and i.LINK implementations of IEEE Std 1394; (4)Compliant with Intel Mobile Power Guideline 2000; (5)Ultralow-power sleep mode; (6)Cable power presence monitoring; (7)Separate cable bias (TPBIAS) for each port; (8)Two general-purpose I/Os; (9)Isochronous receive dual-buffer mode; (10)PME support per 1394 Open Host Controller Interface Specification.

Diagrams

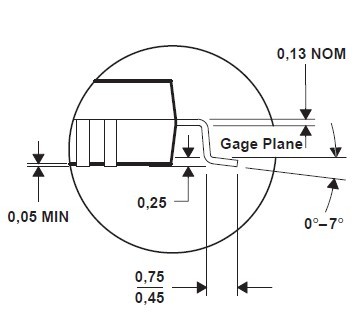

TSB43AB23 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TSB43AB23
TSB43AB23

Other


Data Sheet

Negotiable
TSB43AB23IPDTEP
TSB43AB23IPDTEP

Texas Instruments

1394 Interface IC Mil Enh OHCI PHY/ Link Layer Cntrlr

Data Sheet

0-1: $7.19
1-25: $5.89
25-100: $5.32
100-250: $4.89
TSB43AB23PDT
TSB43AB23PDT

Texas Instruments

1394 Interface IC OHCI 1.1 1394a Link Layer Cntrlr Intgrt

Data Sheet

0-1: $5.60
1-25: $4.72
25-100: $4.34
100-250: $3.95
TSB43AB23PDTG4
TSB43AB23PDTG4

Texas Instruments

1394 Interface IC OHCI 1.1 1394a Link Layer Cntrlr Intgrt

Data Sheet

0-1: $6.38
1-25: $5.23
25-100: $4.72
100-250: $4.33
TSB43AB23PGE
TSB43AB23PGE

Texas Instruments

1394 Interface IC OHCI 1.1 1394a Link Layer Cntrlr Intgrt

Data Sheet

0-1: $5.60
1-25: $4.72
25-100: $4.34
100-250: $3.95
TSB43AB23PGEG4
TSB43AB23PGEG4

Texas Instruments

1394 Interface IC OHCI 1.1 1394a Link Layer Cntrlr Intgrt

Data Sheet

0-1: $5.52
1-25: $4.72
25-100: $3.44
100-250: $3.31
