Product Summary

The 2SB1132 is a Medium Power Transistor.

Parametrics

2SB1132 absolute maximum ratings: (1)Peak reverse voltage, VRM: 90V; (2)DC reverse voltage, VR: 80V; (3)Peak forward current, IFM: 225mA; (4)Mean rectifying current, IO: 100mA; (5)Surge current (1s), Isurge: 500mA; (6)Junction temperature, Tj: 125℃; (7)Storage temperature, Tstg: -55 to +125℃.

Features

2SB1132 features: (1)Low VCE(sat) = -0.2V (Typ.) (IC/IB = -500mA/-50mA); (2)Compliments 2SD1664/2SD1858.

Diagrams

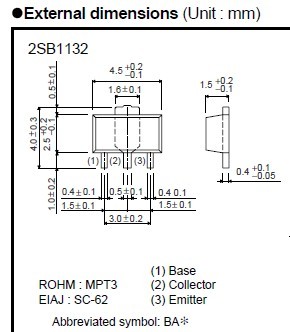

2SB1132 External dimensions
