Product Summary

The SSM2142PZ is an integrated differential-output buffer amplifier that converts a single-ended input signal to a balance doutput signal pair with high output drive. By utilizing low noise thermally matched thin film resistors and high slew rate amplifiers, the SSM2142PZ helps maintain the sonic quality of audio systems by eliminating power line hum, RF interference,voltage drops, and other externally generated noise commonly encountered with long audio cable runs. Excellent rejection of common mode noise and offset errors is achieved by laser trimming of the onboard resistors, assuring high gain accuracy.

Parametrics

SSM2142PZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Storage Temperature: –60℃ to +150℃; (3)Lead Temperature (Soldering, 60 sec): +300℃; (4)Junction Temperature: +150℃; (5)Operating Temperature Range: –40°C to +85℃; (6)Output Short Circuit Duration (Both Outputs): Indefinite.

Features

SSM2142PZ features: (1)-Like Balanced Output; (2)Drives 10 V RMS Into a 600Load; (3)Stable When Driving Large Capacitive Loads and Long Cables; (4)Low Distortion; (5)High Slew Rate; (6)Low Gain Error; (7)Outputs Short-Circuit Protected; (8)Available In Space-Saving 8-Pin Mini-DIP Package; (9)Low Cost.

Diagrams

SSM2142PZ FUNCTIONAL BLOCK DIAGRAM

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

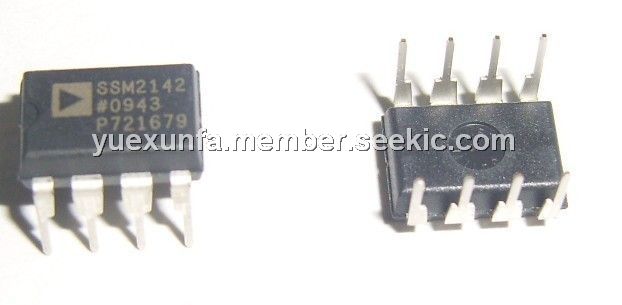

SSM2142PZ
SSM2142PZ

IC AUDIO DRVR MONO AB DIFF 8DIP
Data Sheet
0-1: $3.43
1-10: $3.09
10-25: $2.81
25-100: $2.54
100-250: $2.33
250-500: $2.13
500-1000: $1.85
1000-2500: $1.83
