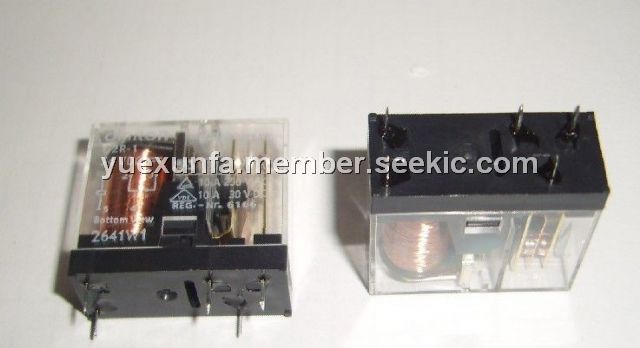

The G2R-1-24VDC is a Power Relay for a Variety of Purposes with Various Models.

Parametrics

G2R-1-24VDC specifications: (1)Rated voltage: 12 VAC; (2)Rated current 50 Hz: 93 mA; 60 Hz: 75 mA; (3)Coil resistance: 65Ω; (4)Coil inductance (H) (ref. value)Armature OFF: 0.19; Armature ON: 0.39; (5)Must operate voltage: 80% max. of rated voltage; (6)Must release voltage: 30% min. of rated voltage; (7)Max. voltage: 140% of rated voltage (at 23.C); (8)Power consumption: Approx. 0.9 VA at 60 Hz (approx. 0.7 VA at 60 Hz).

Features

G2R-1-24VDC features: (1)Conforms to VDE0435 (VDE approval: C250 insulation grade), UL508, CSA22.2, SEV, SEMKO; (2)Meets VDE0700 requirements for household products according to VDE0110; (3)Clearance and creepage distance: 8 mm/8 m; (4)Models with CTI250 material available; (5)High-sensitivity (360 mW) and high-capacity(16 A) types available; (6)Double-winding latching type available; (7)Plug-in with test button and quick-connect terminals available; (8)Highly functional socket available.

Diagrams

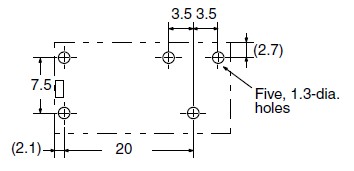

G2R-1-24VDC dimensions

G2R-1 12/24VDC
G2R-1 12/24VDC
Other

Data Sheet
Negotiable
G2R-1 AC200/(220)
G2R-1 AC200/(220)
Omron Electronics
General Purpose / Industrial Relays SPDT 10A Thru-Hole 200/220VAC
Data Sheet
