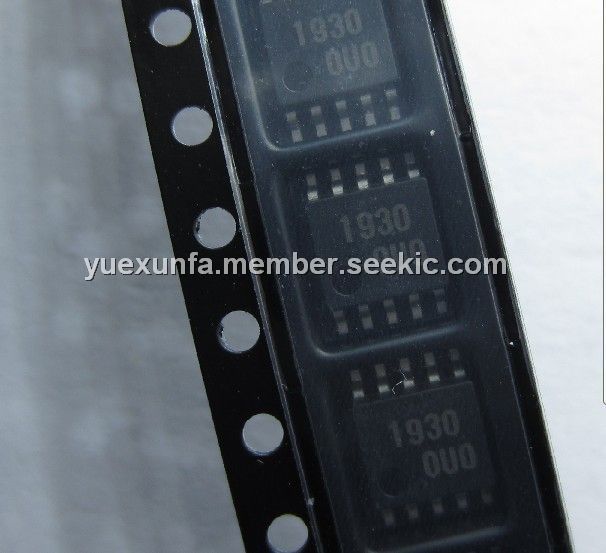

Product Summary
The LB1930M-TLM-E is a single-channel forward/reverse DC brush motor driver. This device is optimal for CD, DVD and Blue Ray Disk player loading motors. And it is possible to use it for others as a general-purpose product.
Parametrics
LB1930M-TLM-E absolute maximum ratings: (1)Supply voltage VCC max: 11 V; (2)Output current IOUT max: 1000 mA; (3)Output voltage handling VOUT max: VCC+ VSF V; (4)Applied input voltage IH max: 10.5 V.
Features
LB1930M-TLM-E features: (1)The LB1930MC features the wide operating voltage range of 2.2 to 10.8V and the low standby current drain of 0.1μA, and therefore can easily be used in battery operated systems; (2)To minimize through currents, the LB1930MC internal logic passes through an internal standby state when switched by the input signals between forward/reverse and brake, or between forward and reverse; (3)There are no constraints on the relationship between the input voltage and the supply voltage. For example, the LB1930MC can be used with VCC = 3V, and VIN = 5V; (4)If the IC chip exceeds 180°C due to an output short causing a large current flow, the built-in thermal protection circuit suppresses the drive current to prevent fires or destruction of the IC.

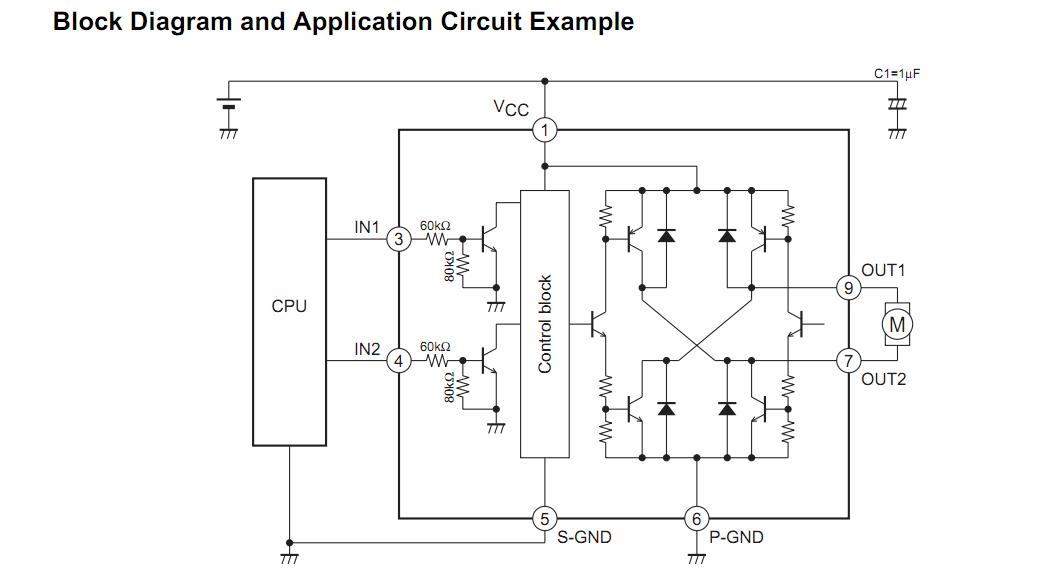

Diagrams
