Product Summary

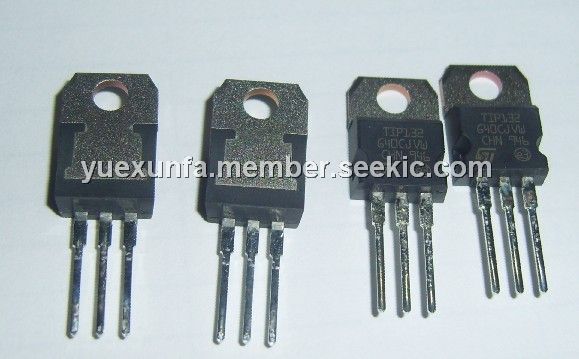

The TIP132 is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration, mounted in Jedec TO-220 plastic package. It is intented for use in power linear and switching applications. The complementary PNP type is TIP132. Also TIP132 is a PNP type.
Parametrics
TIP132 absolute maximum ratings: (1)VCBO Collector-Base Voltage (IE = 0): 60 V; (2)VCEO Collector-Emitter Voltage (IB = 0): 60 V; (3)VEBO Emitter-Base Voltage (IC = 0): 5 V; (4)IC Collector Current: 8 A; (5)ICM Collector Peak Current: 12 A; (6)IB Base Current: 0.3 A; (7)Ptot Total Dissipation: 70W; (8)Ts tg Storage Temperature: -65 to 150 ℃; (9)Tj Max. Operating Junction Temperature: 150 ℃.
Features
TIP132 features: (1)Designed for Complementary Use with TIP135, TIP136 and TIP137; (2)70 W at 25℃ Case Temperature; (3)8 A Continuous Collector Current; (4)Minimum hFE of 1000 at 4 V, 4 A.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIP132-S |
Bourns |
Transistors Darlington NPN DARLINGTON 100V 8A |
Data Sheet |
Negotiable |
|
||||||||||||
 |
TIP132G |
ON Semiconductor |
Transistors Darlington 4A 100V Bipolar Power NPN |
Data Sheet |
Negotiable |
|
||||||||||||
|
TIP132 |
STMicroelectronics |
Transistors Darlington NPN Power Darlington |
Data Sheet |
|
|
||||||||||||
