Product Summary

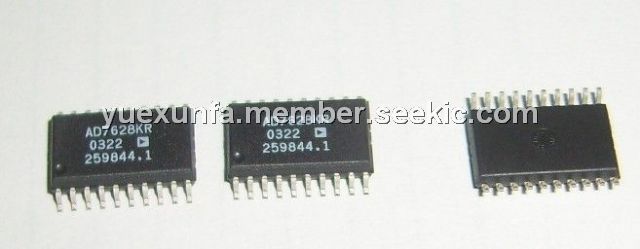

The AD7628KR is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in small 0.3" wide 20-pin DIPs and in 20-terminal surface mount packages. Separate on-chip latches are provided for each DAC to allow easy microprocessor interface. Data is transferred into either of the two DAC data latches via a common 8-bit TTL/CMOS compatible input port. Control input DAC A/DAC B determines which DAC is to be loaded. The AD7628KR’s load cycle is similar to the write cycle of a random access memory, and the AD7628KR is bus compatible with most 8-bit microprocessors, including 6502, 6809, 8085, Z80.
Parametrics
AD7628KR absolute maximum ratings: (1)VDD to AGND: 0 V, +17 V; (2)VDD to DGND: 0 V, +17 V; (3)AGND to DGND: VDD + 0.3 V; (4)DGND to AGND: VDD + 0.3 V; (5)Digital Input Voltage to DGND: -0.3 V, VDD + 0.3 V; (6)VPIN2, VPIN20 to AGND: -0.3 V, VDD + 0.3 V; (7)VREF A, VREF B to AGND: ±25 V; (8)VRFB A, VRFB B to AGND: ±25 V; (9)Power Dissipation (Any Package) to +75℃: 450 mW; Derates above +75℃ by: 6 mW/℃; (10)Operating Temperature Range, Commercial (K) Grades: -40℃ to +85℃; Industrial (B) Grades: –40℃ to +85℃; Extended (T) Grades: -55℃ to +125℃; (11)Storage Temperature: -65℃ to +150℃; (12)Lead Temperature (Soldering, 10 sec): +300℃.
Features
AD7628KR feratures: (1)On-Chip Latches for Both DACs; (2)+12 V to +15 V Operation; (3)DACs Matched to 1%; (4)Four Quadrant Multiplication; (5)TTL/CMOS Compatible from +12 V to +15 V; (6)Latch Free (Protection Schottkys not Required).

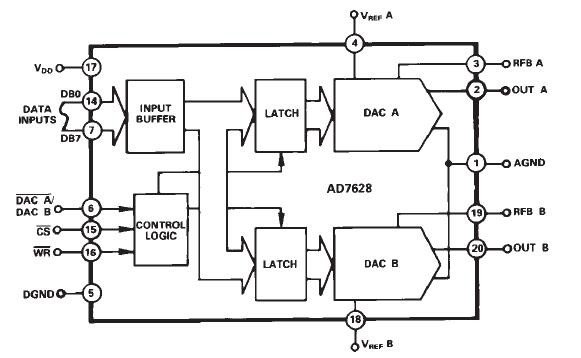

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7628KR |
|
IC DAC 8BIT DUAL MULTIPLY 20SOIC |
Data Sheet |
Negotiable |
|
||||||
|
AD7628KRZ |
|
IC DAC 8BIT DUAL W/BUFF 20-SOIC |
Data Sheet |
|
|
||||||
|
AD7628KRZ-REEL |
|
IC DAC DUAL 8BIT BUFFERED 20SOIC |
Data Sheet |
|
|
||||||
