Product Summary
The BC337-25 is a NPN epitaxial silicon transistor.It is widely applied in switching and amplifier. The BC337-25 is suitable for AF-Driver stages and low power output stages.
Parametrics
BC337-25 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 50V; (2)Collector-Emitter Voltage, VCEO: 45V; (3)Emitter-Base Voltage, VEBO: 5V; (4)Collector Current (DC), IC: 800mA; (5)Collector Power Dissipation, PC: 625mW; (6)Junction Temperature, TJ: 150℃; (7)Storage Temperature, TSTG: -55 to 150℃.
Features
BC337-25 features: (1)Capable of 0.625Watts of Power Dissipation; (2)Collector-current 0.8A; (3)Collector-base Voltage :VCBO=50V(BC337) , VCBO=30V(BC338); (4)Lead Free Finish/RoHS Compliant (P Suffix designates; (5)RoHS Compliant. See ordering information); (6)Epoxy meets UL 94 V-0 flammability rating; (7)Moisure Sensitivity Level 1.

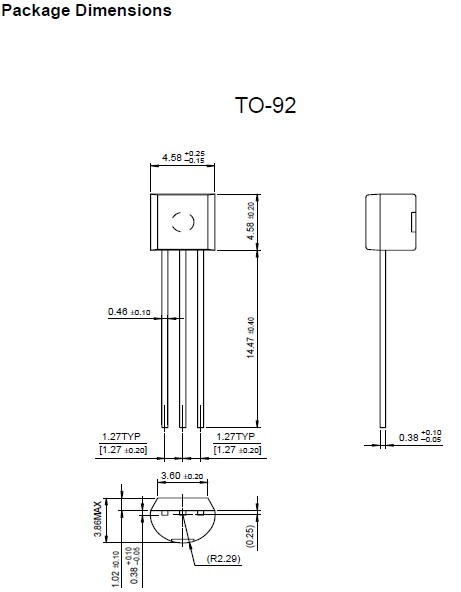

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BC337-25 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP BULK STR LEAD |
Data Sheet |
Negotiable |
|
||||||||||||
|
BC337-25 AMO |
NXP Semiconductors |
Transistors Bipolar (BJT) NPN GP 500MA 45V |
Data Sheet |
Negotiable |
|
||||||||||||
|
BC337-25 T/R |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP TAPE RADIAL |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BC337-25,112 |
|
TRANS NPN GP 500MA 45V TO92 |
Data Sheet |
Negotiable |
|
||||||||||||
|
BC337-25,116 |
|
TRANSISTOR NPN 500MA 45V TO-92 |
Data Sheet |
Negotiable |
|
||||||||||||
|
BC337-25,126 |
|
TRANS NPN GP 500MA 45V TO92 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BC337-25-AP |
Micro Commercial Components (MCC) |
Transistors Bipolar (BJT) Med Pwr NPN 45V, 800mA |
Data Sheet |
|
|
||||||||||||
 |
BC337-25-BULKS |
Vishay Semiconductors |
Transistors Bipolar (BJT) NPN Audio Amplifier |
Data Sheet |
Negotiable |
|
||||||||||||
