Product Summary

The F920J106MPA is a solid tantalum electrolytic capacitor.

Parametrics

F920J106MPA absolute maximum ratings: (1)Capacitance 10μF; (2)Voltage - Rated 6.3V; (3)Tolerance ±20%; (4)ESR (Equivalent Series Resistance) 6 Ohm; (5)Operating Temperature -55 ~ 125℃.

Features

F920J106MPA features: (1)Series F92; (2)Type Molded; (3)Mounting Type Surface Mount; (4)Package / Case 0805 (2012 Metric); (5)Size / Dimension 0.079" L × 0.049"W (2.00mm × 1.25mm); (6)Height - Seated (Max) 0.047" (1.20mm); (7)Manufacturer Size Code P; (8)Features General Purpose.

Diagrams

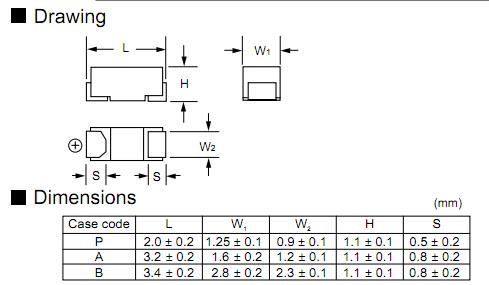

F920J106MPA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

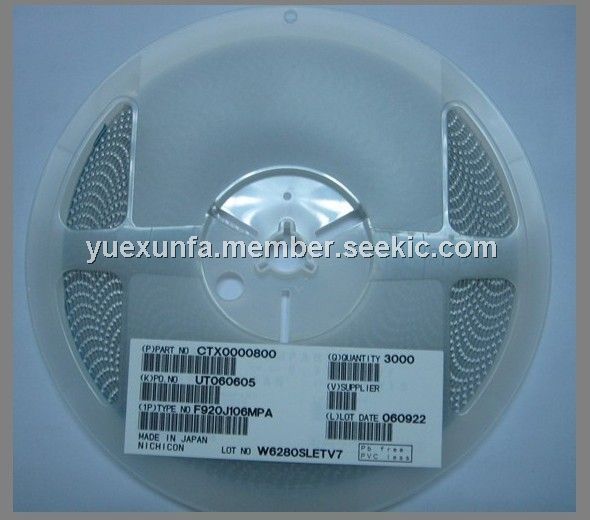

F920J106MPA
F920J106MPA
Nichicon
Tantalum Capacitors - Solid SMD 6.3volts 10uF
Data Sheet
0-1: $0.20
1-100: $0.11
100-200: $0.11
200-1000: $0.06
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
F920E226MAA
F920E226MAA
Nichicon
Tantalum Capacitors - Solid SMD 2.5volts 22uF 3.2x1.6
Data Sheet
0-1: $0.17
1-500: $0.12
500-1000: $0.11
1000-2500: $0.10
F920E336MBA
F920E336MBA
Nichicon
Tantalum Capacitors - Solid SMD 2.5volts 33uF 3.5x2.8
Data Sheet
0-1: $0.19
1-500: $0.12
500-1000: $0.12
1000-2500: $0.11
F920E686MBA
F920E686MBA
Nichicon
Tantalum Capacitors - Solid SMD 2.5volts 68uF 3.5x2.8
Data Sheet
0-1: $0.34
1-500: $0.22
500-1000: $0.21
1000-2500: $0.19
F920G106MPA
F920G106MPA
Nichicon
Tantalum Capacitors - Solid SMD 4volts 10uF 2x1.25
Data Sheet
0-1: $0.25
1-500: $0.10
500-1000: $0.08
1000-2500: $0.06
2500-3000: $0.06
F920J106MPA
F920J106MPA
Nichicon
Tantalum Capacitors - Solid SMD 6.3volts 10uF
Data Sheet
0-1: $0.20
1-100: $0.11
100-200: $0.11
200-1000: $0.06
F920J107MBA
F920J107MBA
Nichicon
Tantalum Capacitors - Solid SMD 100uF 6.3V 20%
Data Sheet
0-1: $0.52
1-25: $0.45
25-100: $0.30
100-250: $0.26
