Product Summary

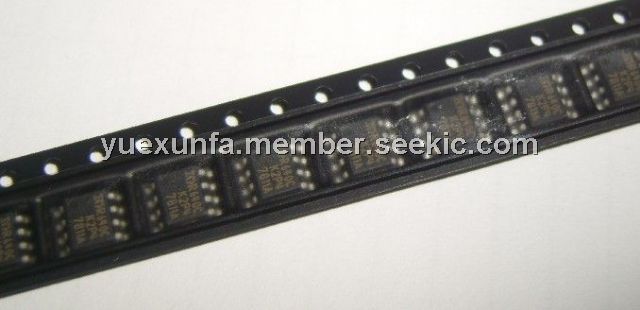

The IRF7811ATR is a HEXFET Chipset for DC-DC Converters. It employs advanced HEXFET Power MOSFET technology to achieve an unprecedented balance of on-resistance and gate charge. The reduced conduction and switching losses make the IRF7811ATR ideal for high efficiency DC-DC converters that power the latest generation of microprocessors.
Parametrics
IRF7811ATR absolute maximum ratings: (1)Drain-Source Voltage VDS: 28 V; (2)Gate-Source Voltage VGS: ±12V; (3)Continuous Drain or Source Current, ID: 14.5A; (4)Pulsed Drain Current?IDM: 100A; (5)Power Dissipation, PD: 2.5 W; (6)Junction & Storage Temperature Range TJ, TSTG: –55 to 150℃; (7)Continuous Source Current (Body Diode) IS: 2.5 A; (8)Pulsed Source Current ISM: 50A.
Features
IRF7811ATR features: (1)N-Channel Application-Specific MOSFETs; (2)Ideal for CPU Core DC-DC Converters; (3)Low Conduction Losses; (4)Low Switching Losses; (5)Minimizes Parallel MOSFETs for high current applications.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRF7811ATR |
|
MOSFET N-CH 28V 11.4A 8-SOIC |
Data Sheet |
Negotiable |
|
||||
|
IRF7811ATRPBF |
|
MOSFET N-CH 28V 11A 8-SOIC |
Data Sheet |
Negotiable |
|
||||
