Product Summary

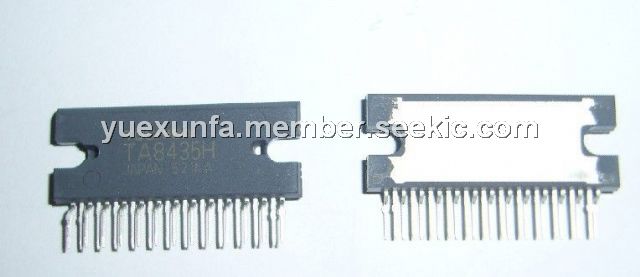

The TA8435H is a PWM chopper type bipolar stepping motor driver. Sinusoidal micro step operation is accomplished only a clock signal inputting by means of built-in hard ware.
Parametrics
TA8435H absolute maximum ratings: (1)Supply voltage VCC: 5.5V; (2)Output voltage VM: 40V; (3)Output current IO(peak): 2.5A; (4)MO output current IO(MO): ±2mA; (5)Input voltage VIN: vcc V; (6)Power dissipation PD: 5W; (7)Operating temperature Topr: -40 to 85℃; (8)Storage temperature Tstg: -55 to 150℃; (9)Feed back voltage VNF: 1.0V.
Features
TA8435H features: (1)1 chip bipolar sinusoidal micro step stepping motor driver; (2)Output current up to 1.5A and 2.5A; (3)PWM chopper type; (4)Structured by high voltage Bi-CMOS process technology; (5)Forward and reverse rotation are available; (6)2, 1-2, W1-2, 2W1-2 phase 1 or 2 clock drives are selectable; (7)Package: HZIP25-P; (8)Input pull-up resistor equipped with reset terminal: R=100kΩ; (9)Output monitor available with MO.IO(MO)=±2mA; (10)Reset and enable are available with reset and enable.
