Product Summary

The TPSD226K025R0200 is a robust Mn02 solid electrolyte capacitor.

Parametrics

TPSD226K025R0200 absolute maximum ratings: (1)Technical Data: All technical data relate to an ambient temperature of +25℃; (2)Capacitance Range: 0.15 μF to 1500 μF; (3)Capacitance Tolerance: ±10%; ±20%; (4)Temperature Range: -55 to +125℃; (5)Environmental Classification: 55/125/56 (IEC 68-2).

Features

TPSD226K025R0200 features: (1)Low ESR series of robust Mn02 solid electrolyte capacitors; (2)CV range: 0.15-1500μF / 2.5-50V; (3)14 case sizes available; (4)Power supply applications.

Diagrams

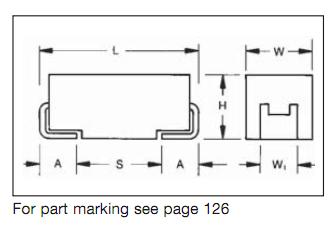

TPSD226K025R0200 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

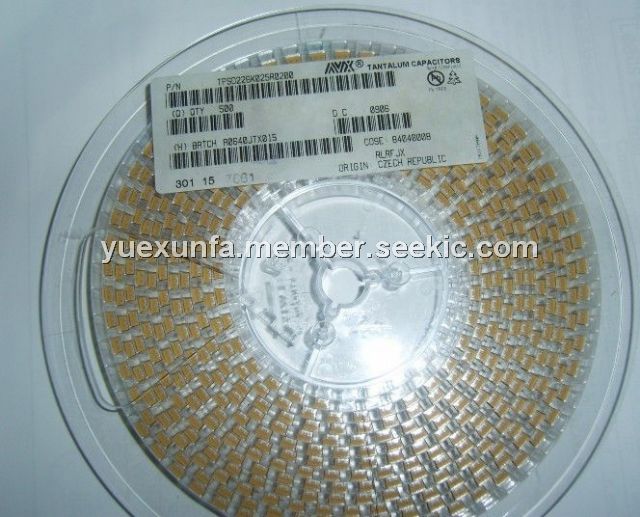

TPSD226K025R0200
TPSD226K025R0200
AVX
Tantalum Capacitors - Solid SMD 22uF 25V 10% L ESR
Data Sheet
0-1: $1.48
1-10: $1.22
10-100: $1.03
100-500: $0.58
