Product Summary

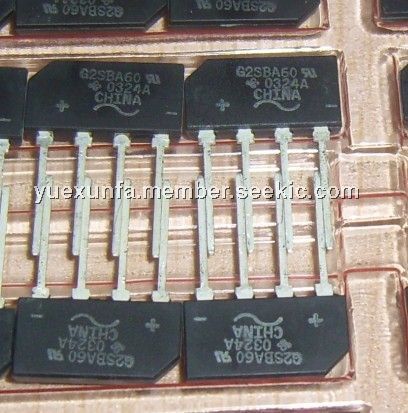

The G2SBA60 is a Glass Passivated Single-Phase Bridge Rectifier. It is suitable for General purpose use in ac-to-dc bridge full wave rectification for monitor, TV, printer, SMPS, adapter, audio equipment, and home appliances applications.
Parametrics
G2SBA60 absolute maximum ratings: (1)Maximum repetitive peak reverse voltage VRRM: 600V; (2)Maximum RMS voltage VRMS: 420V; (3)Maximum DC blocking voltage VDC: 600V; (4)Maximum average forward rectified output current at TA = 25℃, IF(AV): 1.5 A; (5)Peak forward surge current single sine-wave superimposed ; (6)on rated load, IFSM: 60 A; (7)Rating for fusing (t < 8.3 ms) I2t: 15 A2s; (8)Operating junction and storage temperature range TJ, TSTG: - 55 to + 150℃.
Features
G2SBA60 features: (1)UL recognition file number E54214; (2)Ideal for printed circuit boards; (3)High surge current capability; (4)Typical IR less than 0.1 uA; (5)High case dielectric strength ; (6)Solder dip 260℃, 40 s; (7)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G2SBA60 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
G2SBA60-E3/45 |
Vishay Semiconductors |
Bridge Rectifiers 1.5 Amp 600 Volt Glass Passivated |
Data Sheet |
|
|
||||||||||||
|
G2SBA60-E3/51 |
Vishay Semiconductors |
Bridge Rectifiers 600 Volt 1.5 Amp Glass Passivated |
Data Sheet |
|
|
||||||||||||
|
G2SBA60L-E3/51 |
Vishay Semiconductors |
Bridge Rectifiers 600 Volt 1.5 Amp Glass Passivated |
Data Sheet |
|
|
||||||||||||
|
G2SBA60L-E3/45 |
Vishay Semiconductors |
Bridge Rectifiers 1.5 Amp 600 Volt Glass Passivated |
Data Sheet |
|
|
||||||||||||
