Product Summary

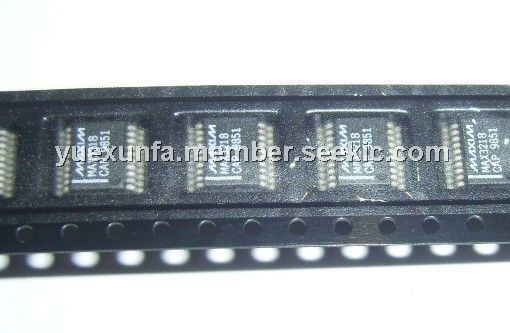

The MAX3218CAP is a RS-232 transceiver. It is intended for battery-powered EIA/TIA-232E and V.28/V.24 communications interfaces that need two drivers and two receivers with minimum power consumption from a single low- voltage supply. The MAX3218CAP provides a wide +1.8V to +4.25V operating voltage range while maintaining true RS-232 and EIA/TIA-562 voltage levels. The MMAX3218CAP runs from two alkaline, NiCd, or NiMH cells without any form of voltage regulator. A guaranteed 120kbps data rate provides compatibility with popular software for communicating with personal computers. The applications of the MAX3218CAP are (1)Battery-Powered Equipment; (2)Subnotebook Computers; (3)PDAs; (4)Hand-Held Equipment; (5)Peripherals; (6)Cellular Phones.

Parametrics

MAX3218CAP absolute maximum ratings: (1)Supply Voltages, VCC: -0.3V to +4.6V; V+: (VCC - 0.3V) to +7.5V; V-: +0.3V to -7.4V; VCC to V-: +12V; LX: -0.3V to (1V + V+); (2)Input Voltages, T_IN, FORCEON, FORCEOFF: -0.3V to +7V; R_IN: ±25V; (3)Output Voltages, T_OUT: ±15V); R_OUT: -0.3V to (VCC + 0.3V); (4)Short-Circuit Duration, R_OUT, T_OUT to GND: Continuous; (5)Continuous Power Dissipation: 889mW; (6)Operating Temperature Ranges: 0 to +70℃; (7)Storage Temperature Range: -65 to +150℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX3218CAP features: (1)1μA Supply Current Using AutoShutdown; (2)Operates Directly from Two Alkaline, NiCd or NiMH Cells; (3)+1.8V to +4.25V Single-Supply Voltage Range; (4)120kbps Data Rate Guaranteed; (5)Low-Cost Surface-Mount Components; (6)Meets EIA/TIA-232E Specifications; (7)Three-State Receiver Outputs; (8)Flow-Through Pinout; (9)On-Board DC-DC Converters; (10)20-Pin SSOP and DIP Packages.

Diagrams

MAX3218CAP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX3218CAP
MAX3218CAP

Maxim Integrated Products

RS-232 Interface IC Integrated Circuits (ICs)

Data Sheet

Negotiable
MAX3218CAP+
MAX3218CAP+

Maxim Integrated Products

RS-232 Interface IC 1uA 1.8-4.25V Tcvr w/AutoShutdown

Data Sheet

0-1: $3.29
1-25: $2.21
25-50: $1.60
50-100: $1.58
MAX3218CAP+T
MAX3218CAP+T

Maxim Integrated Products

RS-232 Interface IC 1uA 1.8-4.25V Tcvr w/AutoShutdown

Data Sheet

0-1665: $1.38
1665-2000: $1.38
MAX3218CAP-T
MAX3218CAP-T

Maxim Integrated Products

RS-232 Interface IC

Data Sheet

Negotiable
